SMC Compression Mold for Automotive Parts with Single-cavity Design and Oil Heating System for 500,000 Shots Mould Life

MOQ: 1 Set
Price: $10000+
Standard Packaging: Wooden Case
Delivery Period: 45-60 days for mould
Payment Method: T/T
Supply Capacity: 120-150 Sets Molds
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UTrust Mould
Certification
CE
Model Number
UM-24
Mold Type:
Compression Mold
Product Material:
SMC
Cavity:
Single-cavity
Heating System:
Oil
Customized:
Customized
Structure:
According To Your Drawing/Sample
Warranty Period:
1 Year
Origin:
China
Production Capacity:
30 Sets/Month
Material:
P20
Demoulding:
Automatic
Mould Life:
150000 Shots
Warranty:
1 Year
Lead Time:
60Days
Transport Package:
Wooden Case
HS Code:
8480719090
Highlight:

SMC Auto Parts Molding

,

Car Back Door Panel Compression Mould

,

Compression Auto Parts Molding

Product Description
SMC Auto Parts Molding Car Back Door Panel Compression Mould
Product Overview
SMC automotive part mould specializing in compression molding for automotive applications, particularly car back door panels.
Technical Specifications
Product Material SMC
Core & Cavity Steel 2738
Steel Hardness HRC34-38
Mould Standard DME
Cavity Number SINGLE
Ejector System Ejector pin + oil cylinder
Cycle Time 30-35S
Tooling Lead Time 60 DAYS
Mould Life 500,000 SHOTS
Quality Assurance ISO9001
Our Advantages
  • High quality manufacturing standards
  • Reasonable pricing
  • On-time delivery guarantee
  • Comprehensive after-sale service
  • Strict quality control processes
  • Fully automated mould systems
Service Commitment
  • In-time response on letters, telephone calls or fax
  • In-time supply of quotations and mould designs
  • In-time communication on technical points
  • In-time sending of mould machining progress photos and schedules
  • In-time mould testing and sample delivery
  • In-time mould delivery
Manufacturing Capabilities
We specialize in various types of compression moulds including SMC, BMC, and GMT moulds. With extensive experience, we've successfully delivered over 30 sets of SMC moulds annually to international clients in Australia, Holland, Russia, UK, and more.
Application Areas
  • Automobile SMC mould (cars, trucks, caravan)
  • Sanitary Series SMC mould (shower base, bathroom suites)
  • Building & Construction Industries
  • Electrical & Electronic SMC mould
  • SMC door skin mould
Why Choose UTrust Mould
Design Experience Many years of experience with senior professional designers and skilled workers
Production Capacity 200-300 sets per year with on-time delivery
Quality Assurance Own plastic mould workshop ensuring superior quality
Communication Weekly progress reports with detailed photos for customer monitoring
Additional Services Supply rapid prototypes and low-volume production for quality verification
Mould Documentation
  • Tool check-list
  • Steel certifications
  • Steel dimensions report
  • Mold tryout process sheet
  • Tool assembly drawing printings
  • Part drawing and latest dimensions report
  • CD containing 2D & 3D mold drawing, electrode data and all documentation
Steel Suppliers
Supplier Country Steel Number
FINKL USA P20, H13
Assab Sweden S136, S136H, 718H
DAIDO Japan NAK80, SKD61, PX5
Buderus Germany 1.2311, 1.2312, 1.2343, 1.2738
Additional Advantages
  • Huge production capacity
  • Quick response to any problem
  • Complete equipment for machining, inspection, and mold trials
  • Weekly mould progress photos
  • Steel certification and heat treatment certification provided
  • Easy damaged spare parts available
  • Clean parting lines and high-quality polish skills
Product Gallery

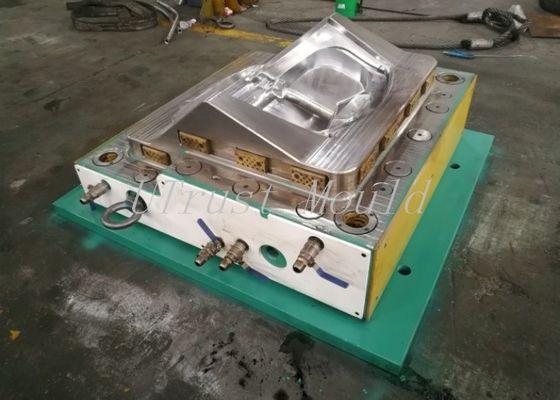

SMC compression mould for car back door panel Close-up view of mould components and finish Technical diagram of compression mould design Mould assembly and specification details
Frequently Asked Questions
How about your quality control?
We have a professional QC team to control mold quality from raw material, machining to final mould testing. Quality control is our first priority, recognizing that quality is the life of our enterprise.
What's your lead time?
For most molds, normally 45 to 60 working days (excluding Chinese official holidays) after deposit received and mold drawings approved.
How to approval samples?
You can visit our factory to see mold testing directly, or we can send samples by DHL, TNT, Fedex along with mold running videos and molding parts dimension inspection reports by email.
What about your after service?
1 year warranty under normal use procedure. Spare parts damaged under normal conditions will be offered free within one year. We provide continuous support and are available for assistance at any time.
Contact Us: For new SMC/BMC/GMT compression mould projects, please send your 2D/3D drawings or sample pictures with complete dimensions. We will respond promptly.
