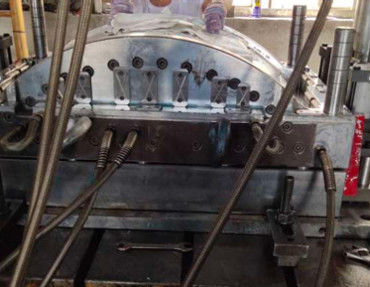

Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots

MOQ: 1 Set
Price: 50000
Standard Packaging: Wooden Case
Payment Method: T/T
Supply Capacity: 120-150 Sets Molds
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
UTrust Mould
Certification
SMS authentication
Model Number
SMC
Craft:
Hot Pressing
Product Name:
Smc Mould
Material:
Metal
OEM/ODM:
YES
Cavity:
Single / Multi
Surface Treatment:
Mirror Polish
Runner:
Hot Runner\ Cold Runner
Mould Life:
100K-500K Shots
Design Software::
CAD
Highlight:

Metal SMC Compression Molding

,

Fan Cover Bell Mouth Mold

,

500K Shots SMC Compression Molding

Product Description
Metal SMC Compression Molding Fan 100K-500K Shots Cover Bell Mouth Mold
SMC Fan Cover Bell Mouth Mold Metal SMC Compression Molding Fan 100K-500K Shots Cover Bell Mouth Mold
Brief Introduction Of Mold Structure
Mold Characteristics
1. Vulnerable surface protection
The vulnerable surface of the product is quenched to make the surface hardness > 55HRC. With the same steel, we can extend the service life of the mold by 30,000 to 50,000 molds.
Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 0 Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 1
2. Standard parts selection
Our long-term preferred supplier of standard parts, and set strict testing standards. High-quality standard parts ensure that the mold is more durable, and avoid minor faults affecting the normal production of the mold, which can effectively reduce the cost of later maintenance.
Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 2 Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 3
3. Mold support system
Oil cylinder support column, this structure keeps the oil cylinder in a static state during work, avoiding loosening of the oil nozzle and oil leakage during mass production. In addition, the dust-proof net not only provides safety protection, but also truly realizes the function of dust prevention. The support column effectively avoids the elastic deformation of the lower mold, and cooperates with the support of the mold foot to make the entire lower mold rigid during mass production, ensure that the mold is in a stable state.
Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 4
4. Mold temperature protection
The outer wall of the mold cavity is covered with heat insulation board, the advantages are as follows:
  • Protect mold temperature, avoid heat radiation loss and reduce energy loss
  • The mold temperature is usually around 150°C, and the heat shield can prevent workers from being scalded
Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 5
Energy Consumption
After years of accumulated experience and verification of thousands of molds, we have very strict oil circuit design standards, taking into account the heat radiation range of each oil pipe. We can make the temperature of the mold rise more evenly and quickly, improve the efficiency of the mold, and lower the energy consumption.
Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 6
MOULD
Full high-speed machining of the mold:
  • The product has high dimensional accuracy and clear details
  • The flash of the product is uniform, the thickness is controllable, and the overflow is smooth
  • At the same time, the pressure output by the press is applied to the product to the maximum extent to make the product denser
  • This requires a high processing precision of the mold
Metal SMC Compression Molding Fan Cover Mold 100K-500K Shots 7
