| Place of Origin: | China |
| Brand Name: | UTrust Mould |
| Certification: | CE |
| Model Number: | UM-67 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | $9000-$100000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 45-60 days for mould |
| Payment Terms: | 50% deposit, with the balance payable by wire transfer before delivery. |
| Supply Ability: | 120-150 + sets + per quarterly |
| Mold Type: | Compression Mold | Product Material: | SMC |
|---|---|---|---|
| Cavity: | Single-cavity | Heating System: | Oil |
| Customized: | Customized | Structure: | According To Your Drawing/Sample |
| Warranty Period: | 1 Year | Origin: | China |
| Production Capacity: | 30 Sets/Month | Material: | P20 |
| Demoulding: | Automatic | Mould Life: | 300000-1000000 Shots |
| Warranty: | 1 Year | Lead Time: | 60-90 Days |
| Transport Package: | Wooden Case | HS Code: | 8480719090 |
Product Description

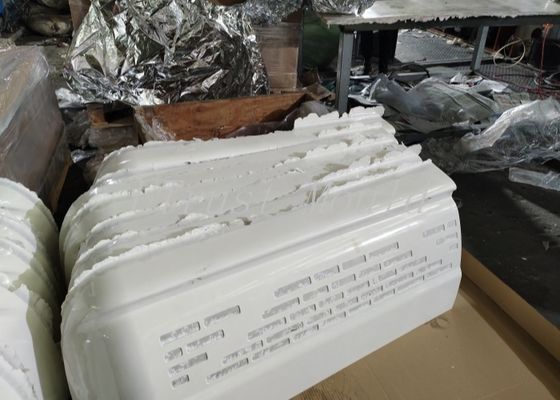

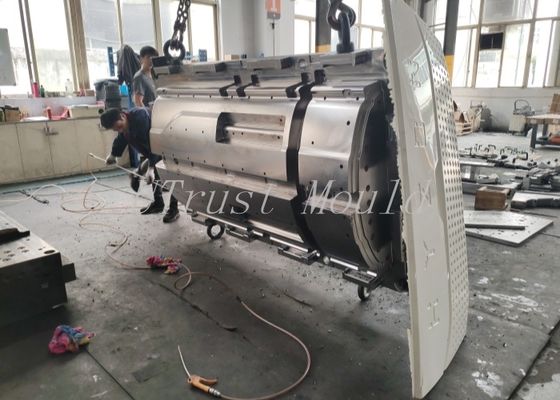

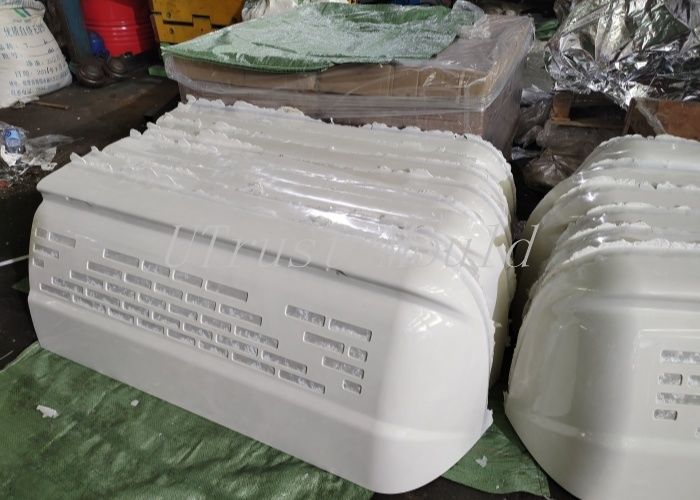

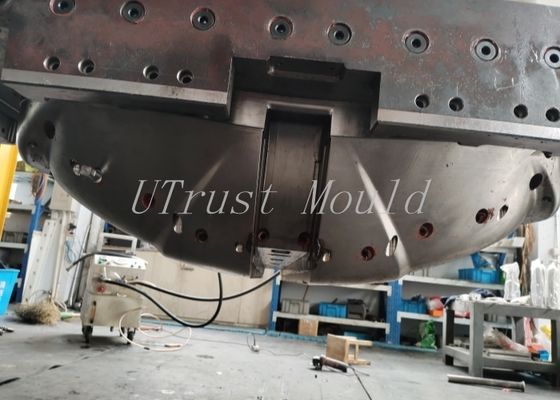

SMC automotive part mould
1. Provide 3D design
2. Mould Steel/hardness: 2738 HRC34-38
3. OEM service
4. Mould life: 500, 000 shots
| Product Name | OEM New High Quality SMC Auto Part Mould |
| Product material | SMC |
| Core& Cavity Steel | 2738 |
| Steel hardness: | HRC34-38 |
| Mould Standard | DME |
| Cavity Number | SINGLE |
| Injection System | / |
| Ejector System | Ejector pin+oil cylinder |
| Cycle Time | 30-35S |
| Tooling lead time | 60DAYS |
| Mould life | 500, 000 SHOTS |
| Quality assurance | ISO9001 |
| Specification | According to client' s requirements |
| Our Advantage | 1. High quality |
| 2. Reasonable price | |
| 3. On time delivery | |
| 4. Good After-sale service | |
| 5. Strict quality control | |
| 6. All the mould are automotic. | |
| Offer you | In-time response on letters, telephone calls or fax |
| In-time supply the quotation and mould designs | |
| In-time communication on the technical points | |
| In-time sending pictures for the mould machining progress and mould finishing schedule | |
| In-time mould test and sample delivery | |
| In-time mould delivery. | |
| For more information please contact us. | |
The displayed pictures is only for your reference.We can make different kinds of SMC,BMC,GMT Compression mold
according to customer's requirements.
UTrust Mould can make many type of compression moulds, such as SMC moulds, BMC moulds, GMT moulds...We make compression mould have many years. In the past 2 years, we taking over 30 sets SMC mould orders, each year from Australia, Holland, Russian, UK...The range could be classified into automotive, bath accessories, equipment, meter box and so on.
UTrust Mould has rich experience in manufacturing different kinds of SMC moulds,BMC moulds,here list some items for reference:
1) Automobile SMC mould(cars,trucks and caravan etc)
2)Sanitary Series SMC mould(shower base,bathroom suites and hygienic surface etc)
3)Building & Construction Industries(civil engineering and household fixtures)
4)Electrical & Electronic SMC mould(housings,fuses and switchgear etc)
5)SMC door skin mould
| Why customers choose our UTrust Mould ? |
| 1.Design experience for many years , Senior professional designer and skilled workers ensure the quality |
| 2.The strength of production capacity , can supply 2 00-- 3 00 sets per year and delivery on time |
| 3. We own plastic mould workshop ensure good quality |
| 4.Good communication skills and good service with customers,schedule are made |
| weekly reports with detaild photos , sent to customers for monitoring |
| 5. we are not only supply plastic mould , also supply rapid prototypes |
| 6. Provide low-volume production for ensure mould quality before shipment |
Documents for Mold Shipment
1. Tool check-list.
2. Steel certifications.
3. Steel dimensions report.
4. Mold tryout process sheet.
5. Tool assembly drawing printings.
6. Part drawing and latest dimensions report.
7. CD contains 2D & 3D mold drawing, electrode data and all above information.
If you have any new SMC/BMC/GMT compression mould project, please sent your 2D/3D drawing or sample picture with whole of dimentions to us, we will reply your soon.
| Mould of steel (Supplier) | Country | Steel Number |
| FINKL | USA | P20,H13 |
| Assab | Sweden | S136,S136H,718H |
| DAIDO | Janpan | NAK80,SKD61,PX5 |
| Buderus | Germany | 1.2311,1.2312,1.2343,1.2738 |
| Advantage: |
| 1.Huge capacity |
| 2. ensure quick response to any problem. |
| 3. Our equipments to serve the whole process from machining to inspection to mold trials, can provide mould progress photos every week. |
| 4. can provide steel certification,and heat treatment certification |
| 5 . can provide easy damaged spare parts |
| 6 .Very clean parting line and high quality polish skill. |
FAQ:
1.How about your quality control?
We have professional QC team to control mold quality from raw material,machining to the final mould testing parts,as we realize that quality control is the first priority to run business successfully,and the Quality is the life of enterprise.
2.What's your lead time?
For most mold,normally 45 to 60 working days ( not including Chinese official holidays ) after deposit received and mold drawings approved.
3.How to approval samples?
1) You can come to our factory to see the mold testing directly.
2) We could send samples by DHL, TNT, Fedex, and we can send mold running video and molding parts dimension inspection report to you by email.
4.What about your after service?
1 year under normal use procedure,Spare part which is non-man made damaged will be offered for free within one year, and you can contact us at any time if you need help.
