| MOQ: | 1 Set |
| Price: | Negotiation |
| Standard Packaging: | Wooden Case |
| Delivery Period: | 30-90 Days |
| Payment Method: | ,T/T,L/C |
| Supply Capacity: | 120-150 Sets Per Quarter |
| Ultra-High Precision & Dimensional Stability: | Molds are meticulously designed and machined to achieve extremely tight tolerances (e.g., +/- 0.02mm), critical for complex carbon fiber structures that require precise fitment. |
| Optimized for Various Curing Methods: | Designed for autoclave, oven, or press curing (including HP RTM), ensuring optimal resin consolidation, minimal voids, and superior mechanical properties. |
| Matched CTE (Coefficient of Thermal Expansion): | Molds are designed with materials (e.g., Invar, aluminum, or carbon fiber composite itself) that precisely match the CTE of carbon fiber, minimizing distortion and residual stress during the curing cycle. |
| Superior Vacuum Integrity: | Guarantees proper resin flow, full impregnation, and defect-free parts (void reduction), essential for high-performance carbon fiber components. |
| Flawless Surface Finish: | Molds provide excellent surface replication, often achieving Class A surfaces for aesthetic or aerodynamic needs, reducing the need for post-finishing. |
| Complex Part & Large Scale Capability: | Expertise in designing and manufacturing molds for intricate geometries, integrated features, and very large carbon fiber components. |
| Mold Type: | Compression Mold, Autoclave Mold, RTM Mold (for carbon fiber), Vacuum Bagging Mold |
| Applicable Material: | Carbon Fiber Prepregs (various resin systems), Dry Carbon Fiber, Carbon Fiber Braids/Fabrics |
| Mold Material: | Invar, Aluminum, High-grade Tool Steel (e.g., H13, 1.2343), Carbon Fiber Composite (for tooling) |
| Operating Temperature: | Up to 250°C / 482°F |
| Operating Pressure (Autoclave/Press): | Up to 10 bar (Autoclave), 1000T (Press) |
| CTE Matching: | +/- 0.5 ppm/°C |
| Vacuum Integrity: | Leak rate < 0.01 bar/hr |
| Precision Tolerance: | +/- 0.02mm on critical dimensions |
| Surface Finish: | Mirror polish, High gloss, Matte, or specific textures |

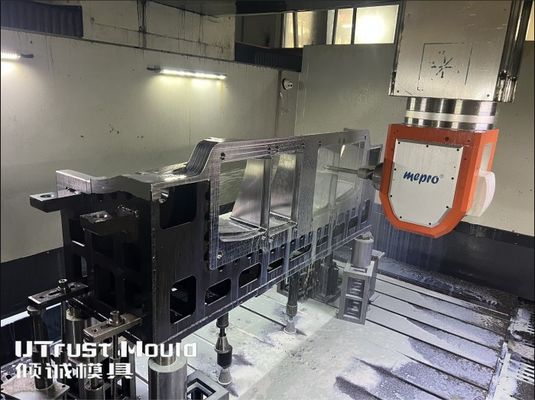

UTrust Mould is a leading expert in advanced carbon fiber mold solutions, leveraging state-of-the-art large gantry 5-axis machining centers and specialized expertise in CTE management, vacuum integrity, and high-temperature resistance for critical aerospace, motorsport, and high-performance applications. Our commitment to unparalleled precision and quality ensures your carbon fiber projects achieve optimal results.
